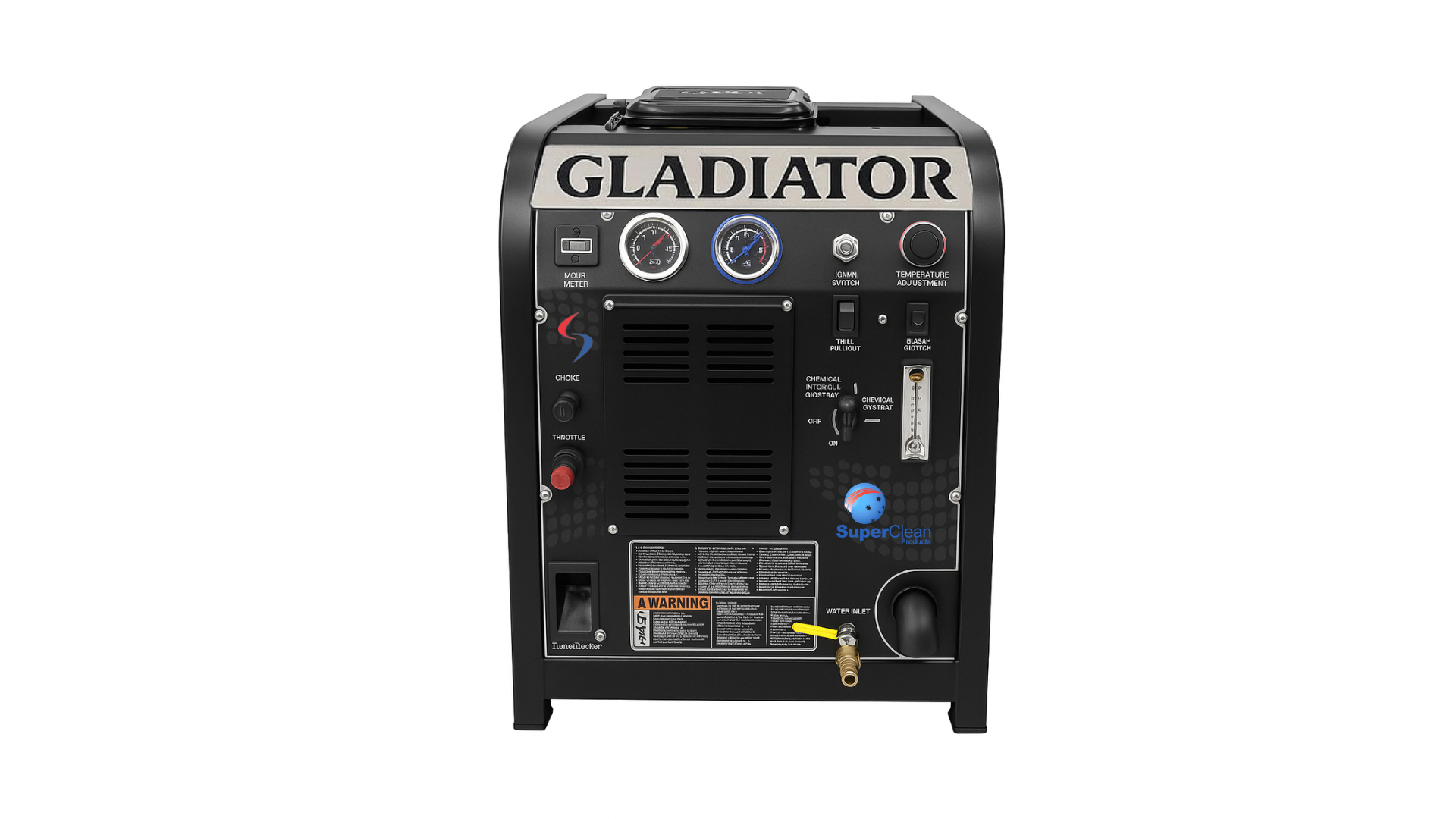

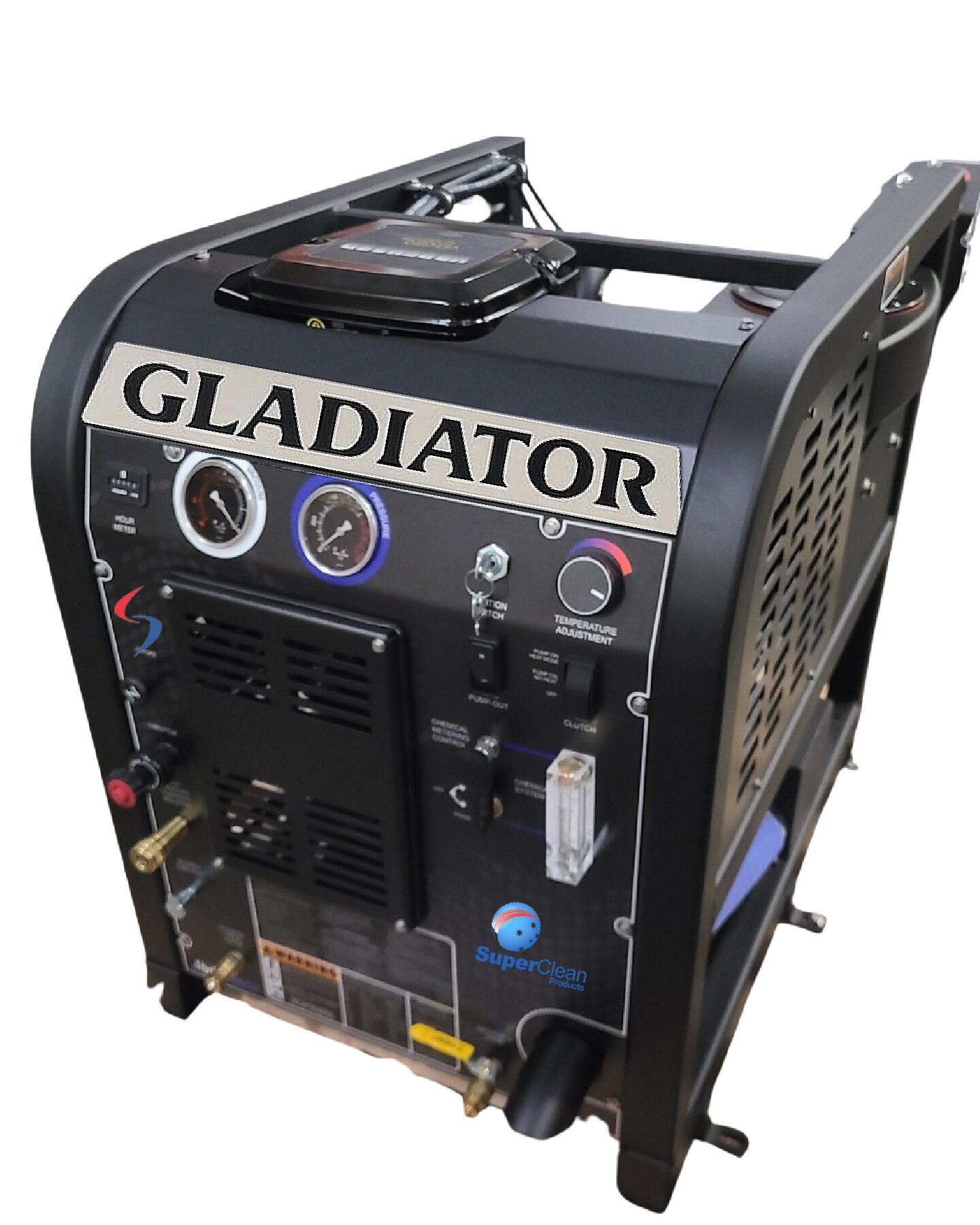

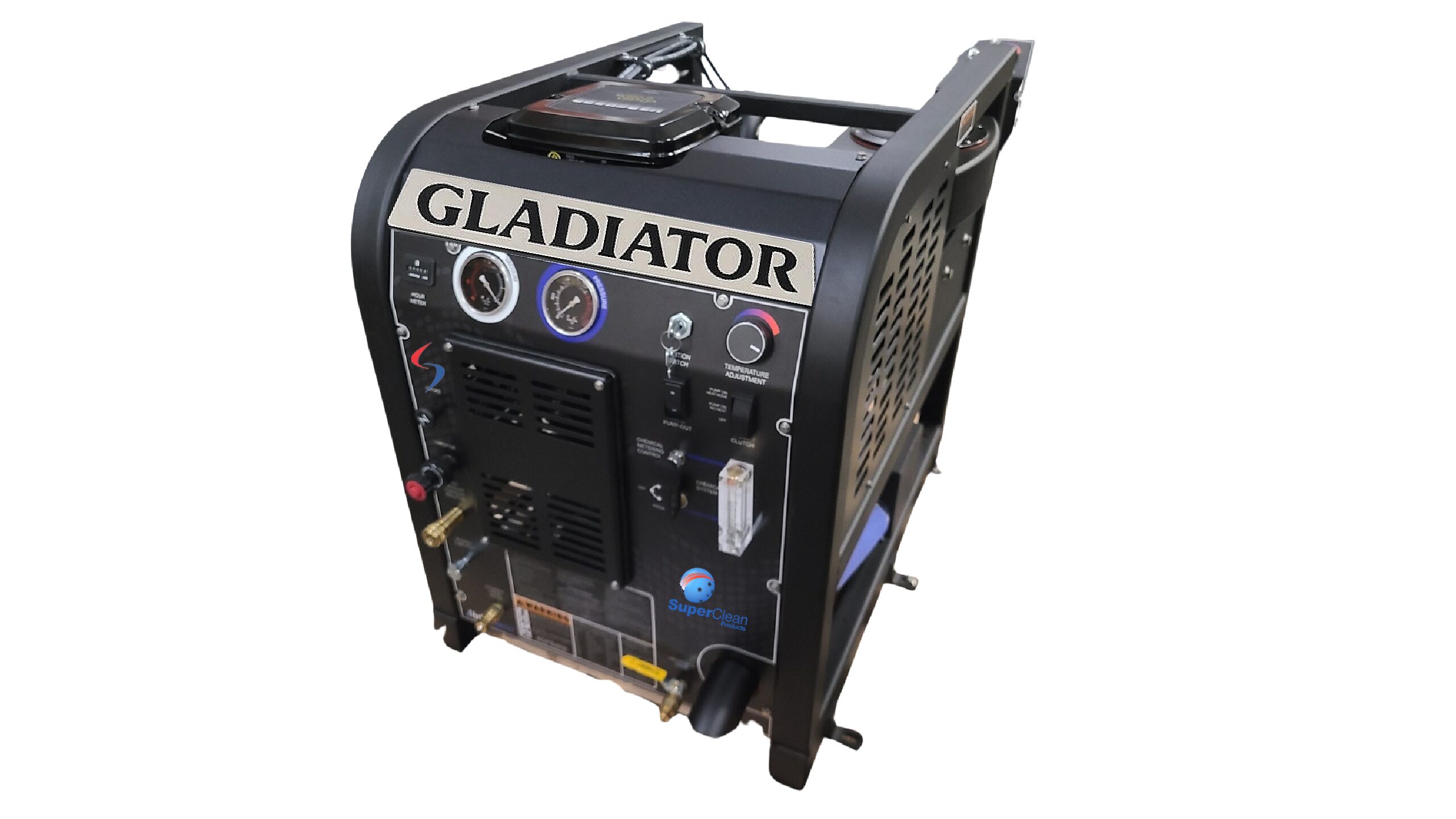

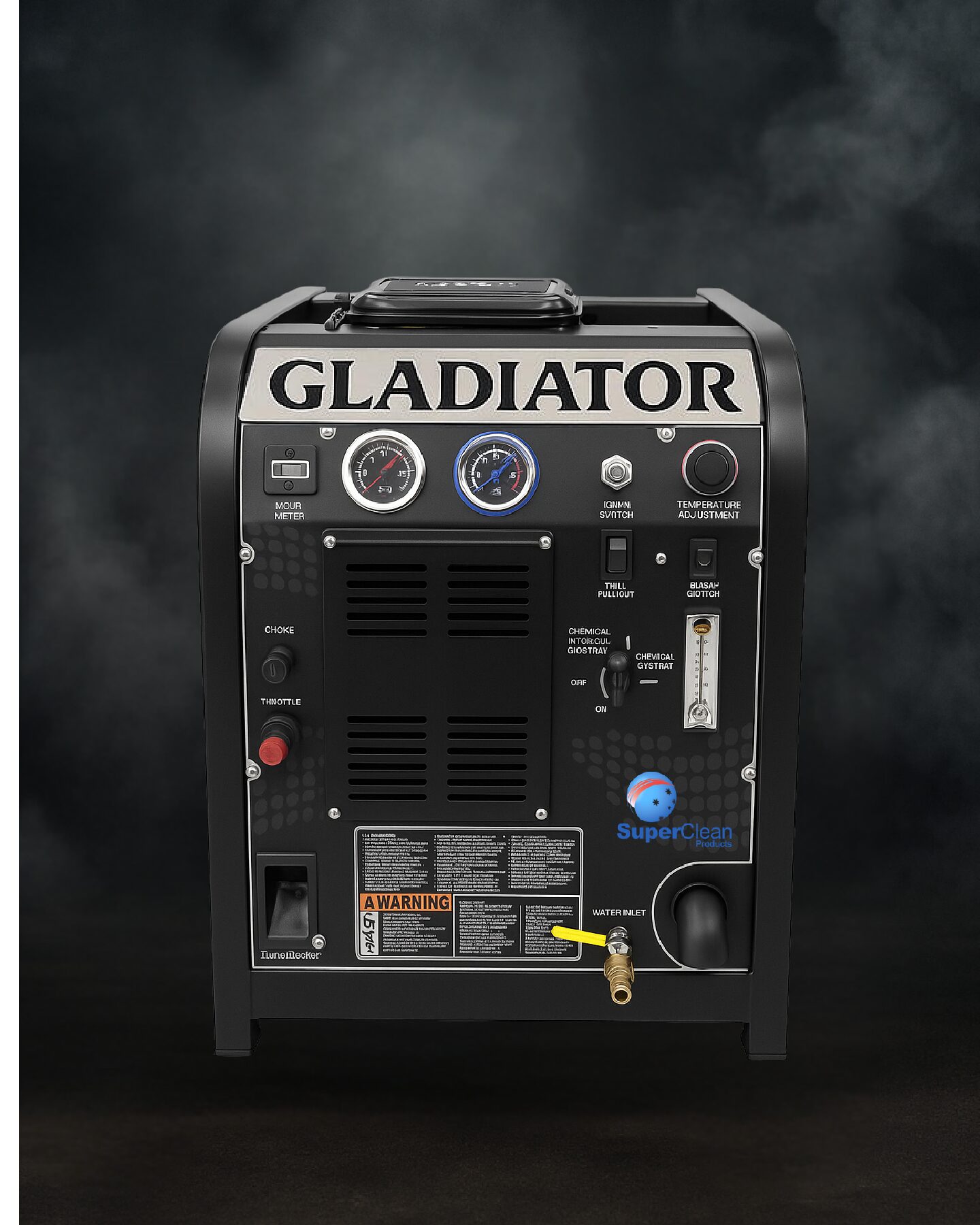

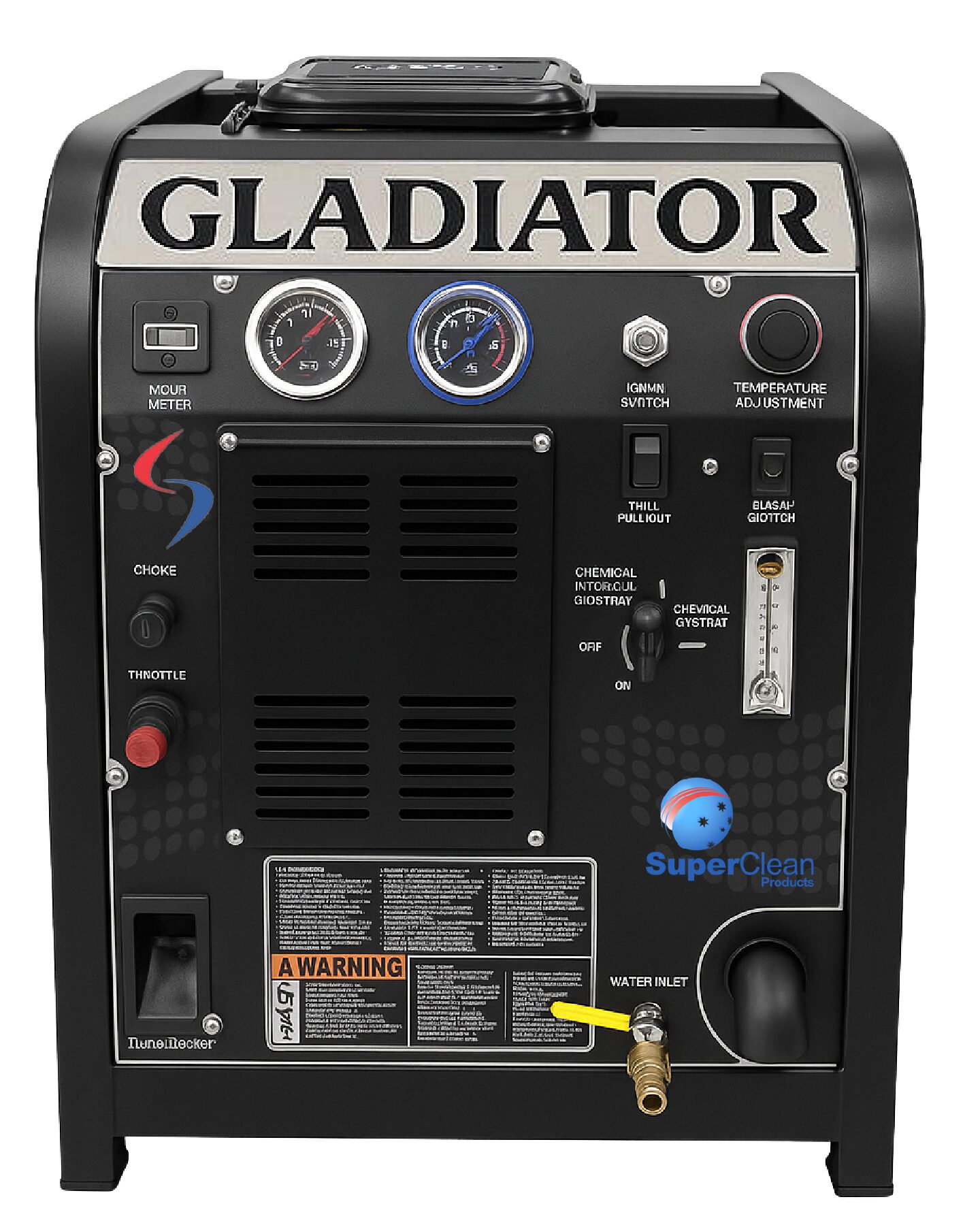

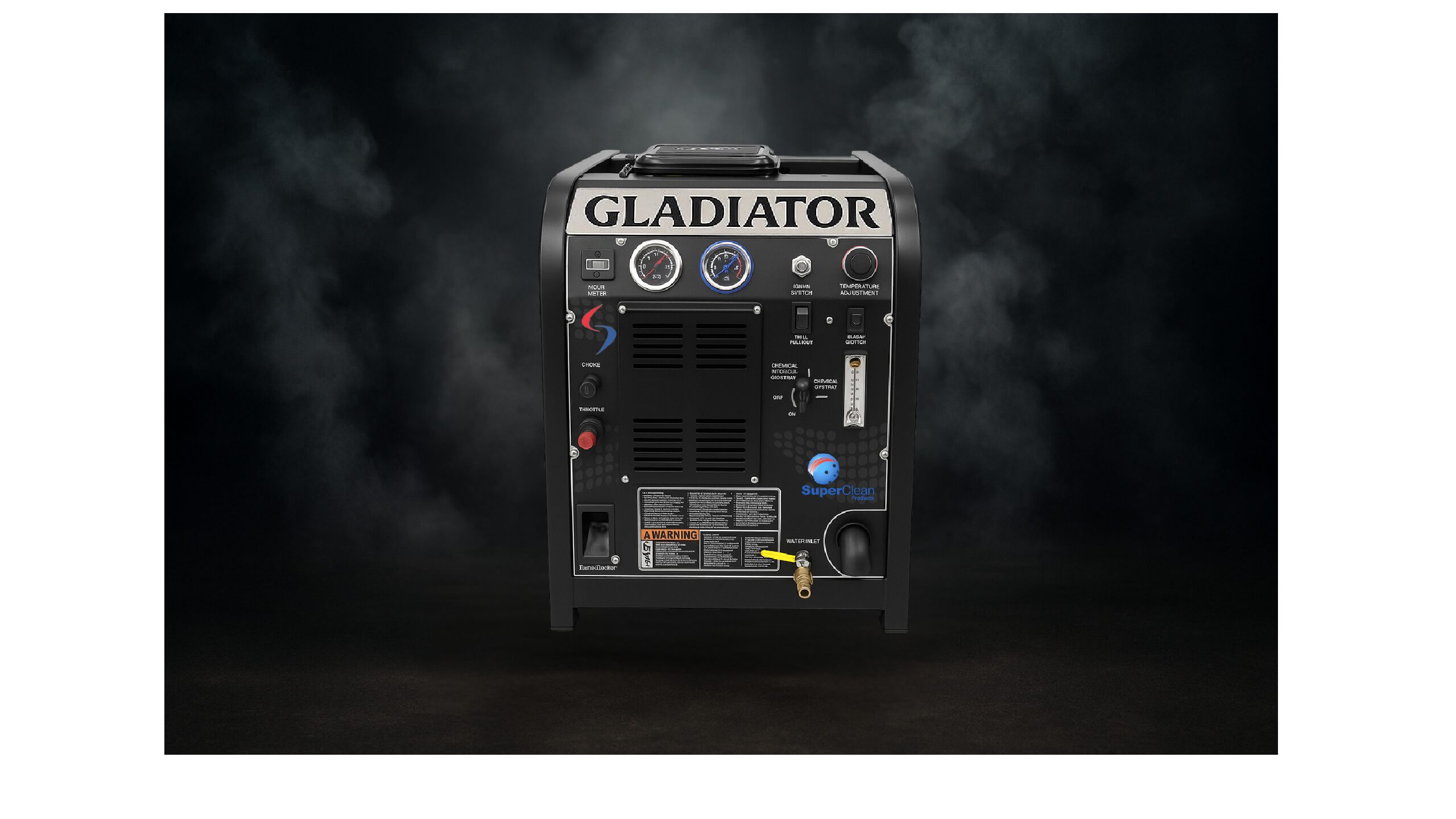

THE GLADIATOR
MORE HEAT. GREATER EASE. LESS NOISE.
BUILT TO TAKE ON YOUR BIGGEST CLEANING AND RESTORATION CHALLENGES!
GLADIATOR
DESCRIPTION
The Gladiator is the perfect solution for companies handling residential and light commercial cleaning, as well as water damage restoration. It delivers superior performance in an entry-level truckmount, providing exceptional capability without compromising cost efficiency.
Designed for operators seeking to advance their service quality, the Gladiator consistently achieves outstanding results. Incorporating an upgraded fin-tubed heat exchange thermal accumulation system with a 40% increase in heating capacity, the Gladiator establishes a new industry benchmark for efficiency and thermal performance. It is seen to be the most powerful and highest-performing machine in its class.
Product Info
SPECIFICATION
• Subcategory: Slide In
• Dimensions: 24”W x 31”H x 36”L
• Weight: 255kgs
• Engine: 18HP Industrial Air-Cooled Engine
• Ignition: Keyed
• Max Temp: 115º C
• Chemical System: Last-step chemical injection, meter controlled
• Recovery Tank: 70 gallon MaxAir™ recovery tank; aluminium, baked-on powder coated finish, includes stainless steel filter and filter basket, 36 1/2″L x 10 1/2″W x 31″H, 100 lbs
• Solution Hose Length: 100 ft x 1/4″
• Vacuum Hose Length: 100 ft x 2″
• Wand Capacity: Single
• Fuel Consumption: 1.1 GPH
• Uses: Residential and Light Commercial/ Water extraction
FEATURES

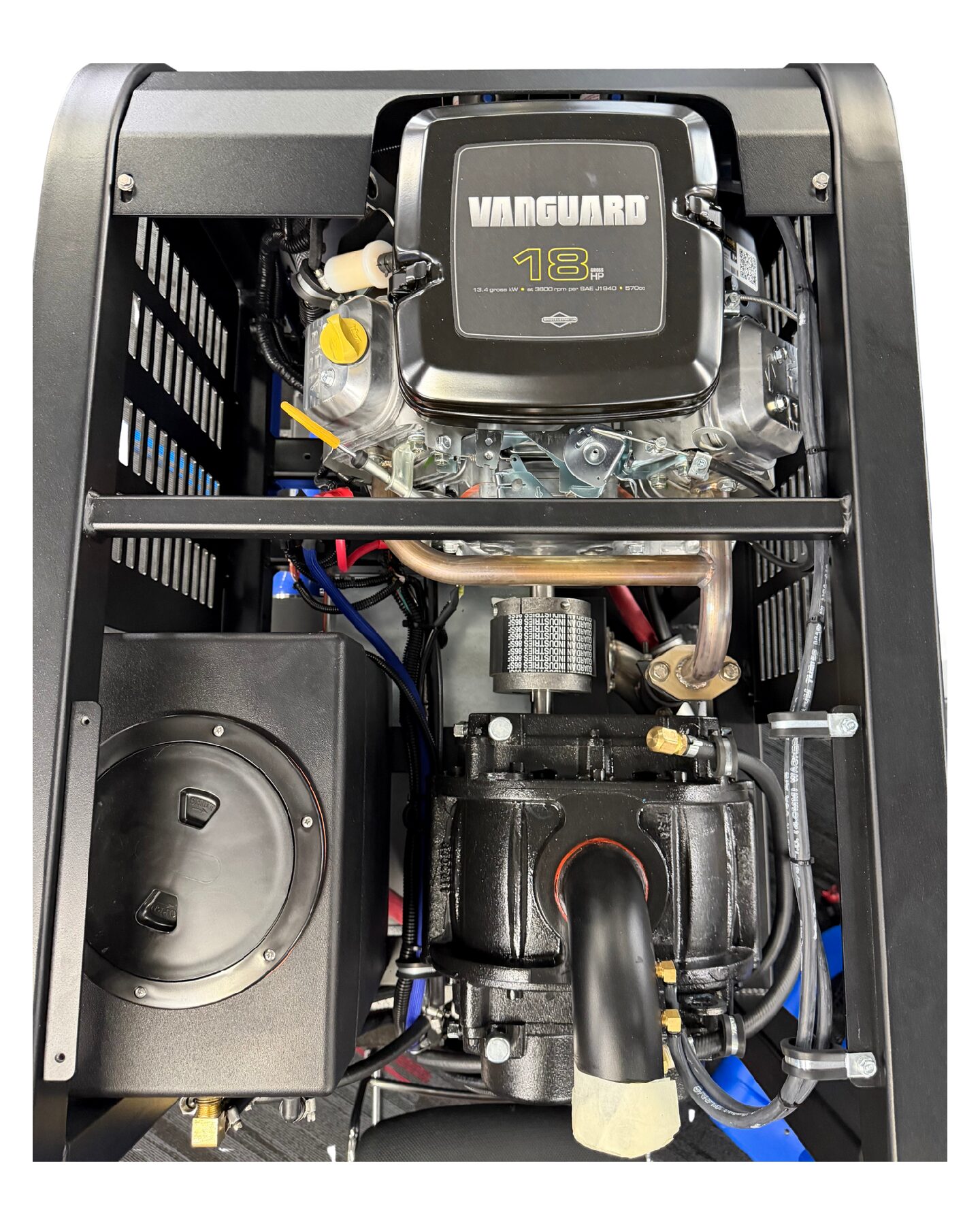

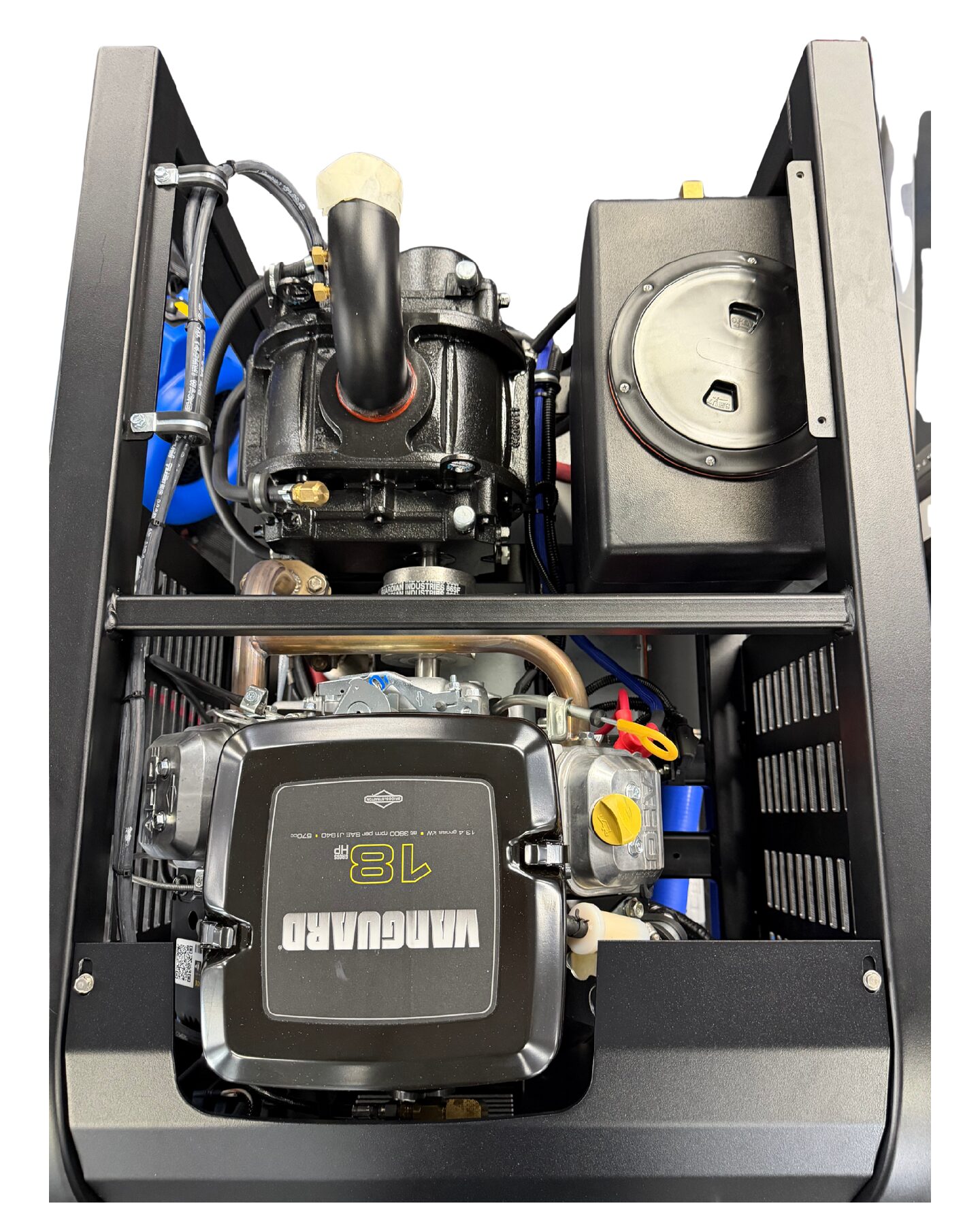

• Engine: 18HP Industrial Air-Cooled Engine
• Reliable 2 cylinder OHV design
• Electric key start, 1.0 gph fuel consumption

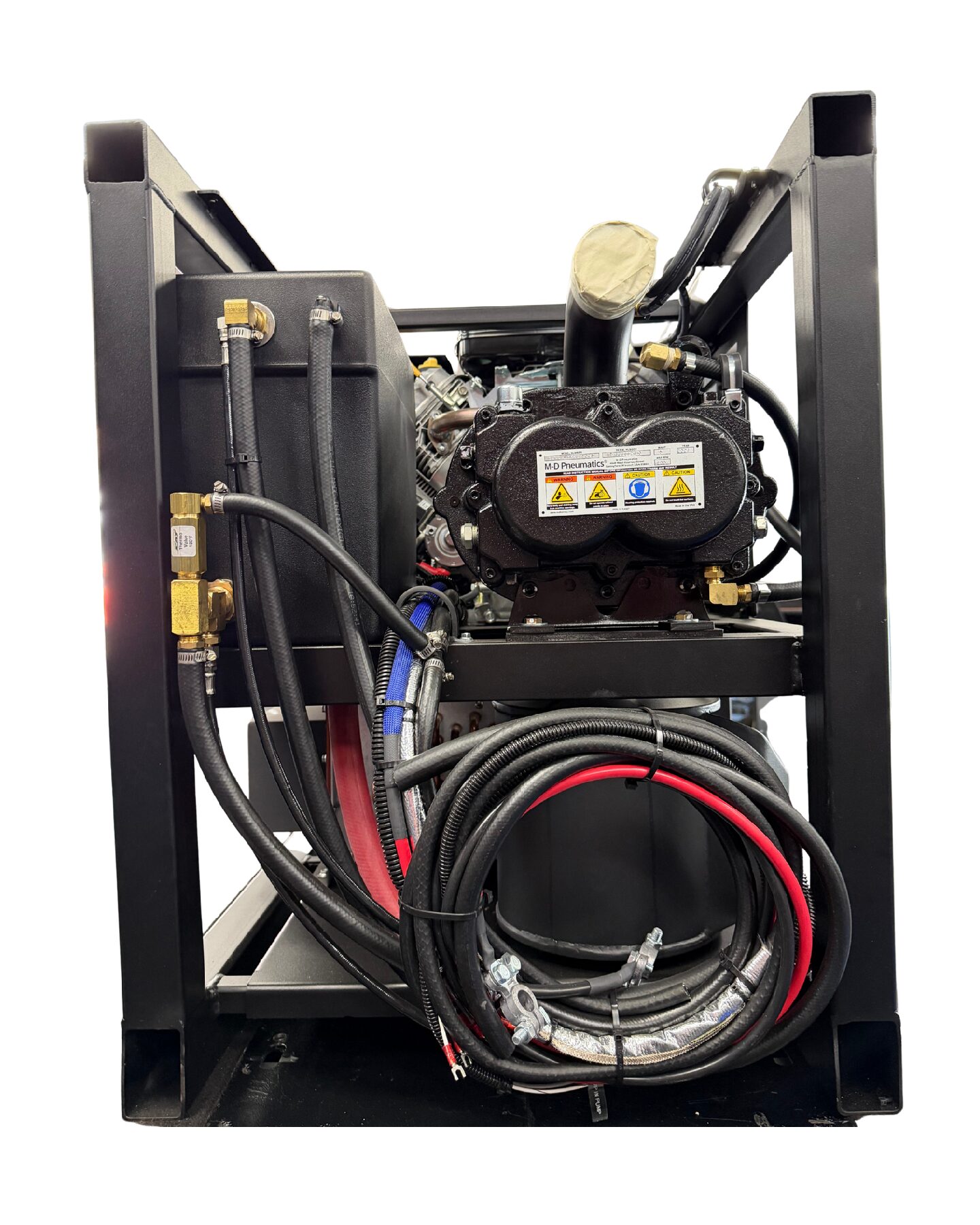

• Vacuum: Competitor® DL 3006 Blower
• Low vibration, pulsation and sound reduced
• Hardened, precision helical gears
• Double row ball bearings at gear end
• Precision machined ductile iron rotors
• Dual oil bath design with oil level sight windows

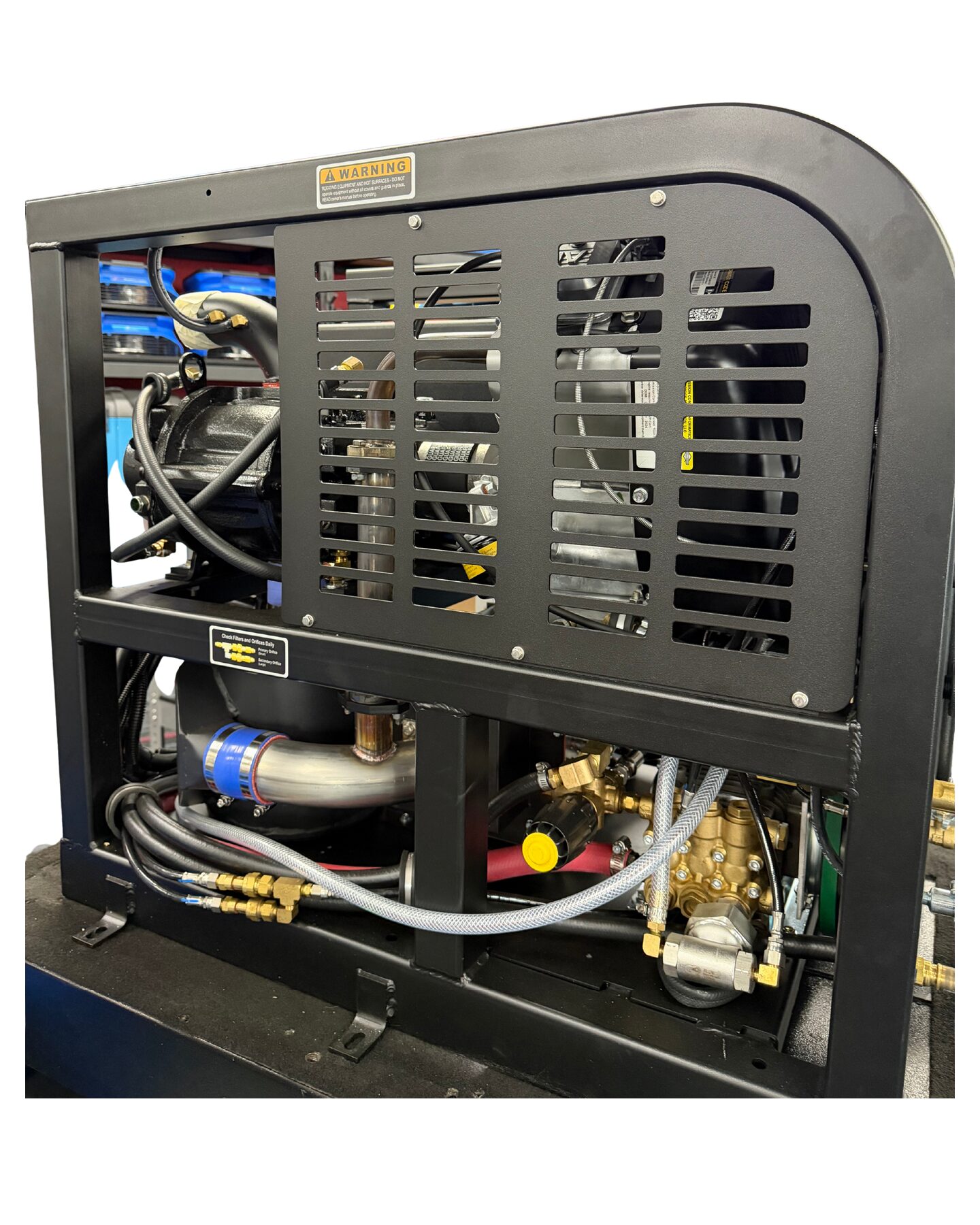

• Competitor High Pressure Solution Pump
• 3.5 gpm capacity
• Operating pressure, 0 to 1,000 heated psi, with HydraClutch™ pump clutch for water extraction
• Heating: MAX-TEMP Thermal Capture and Heat Exchange System
• Divert tube and fin heat exchanger system
• 240°F Maximum Temperature (170-200°F at 1.25gpm water flow)
STANDARD EQUIPMENT
• Chemical flow meter (0-10 gph)
• Runtime hour meter
• Chemical flow control valve
• Vacuum gauge (0-30″ Hg)
• Solution pressure gauge (0-2500 psi)
• Solution pressure adjustment
• Pre-wired pump-in switch
• Pre-wired for AWDS (Automatic Wastewater Disposal System)
• Fresh water inlet
• Water system drain valve
• Solution Hose Length: 100 ft x 1/4″
• Vacuum Hose Length: 100 ft x 2″
• 1.5 Inch EVOLUTION Wand
• Engine choke
• Engine throttle
• Electrical circuit protection (resettable)
• Solution temperature control selector
• Stainless steel last-step chemical injection, meter controlled
• Hydra-Clutch Pump Clutch for water extraction
• 5 gallon chemical jug
• Battery box
• Van decal
• Van installation kit
• Operation and maintenance manual (CD)
• 70 gallon MaxxAir™ recovery tank; includes stainless steel filter and filter basket, 36 1/2″L x 10 1/2″W x 31″H, 100 lbs (100 gallon recovery tank optional)
