Sapphire Scientific 870SS Truckmount
Sapphire Scientific 870SS Truck Mount

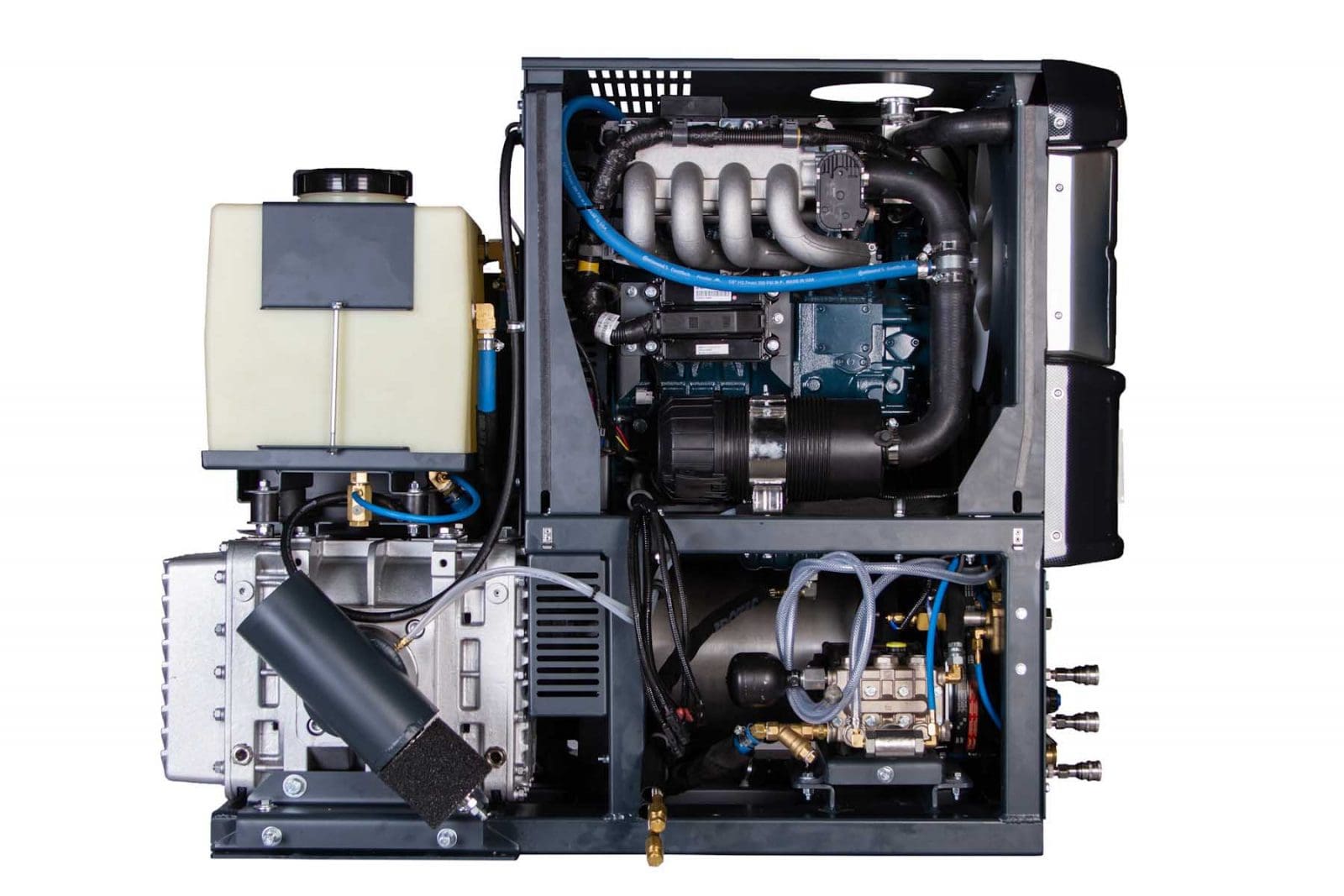

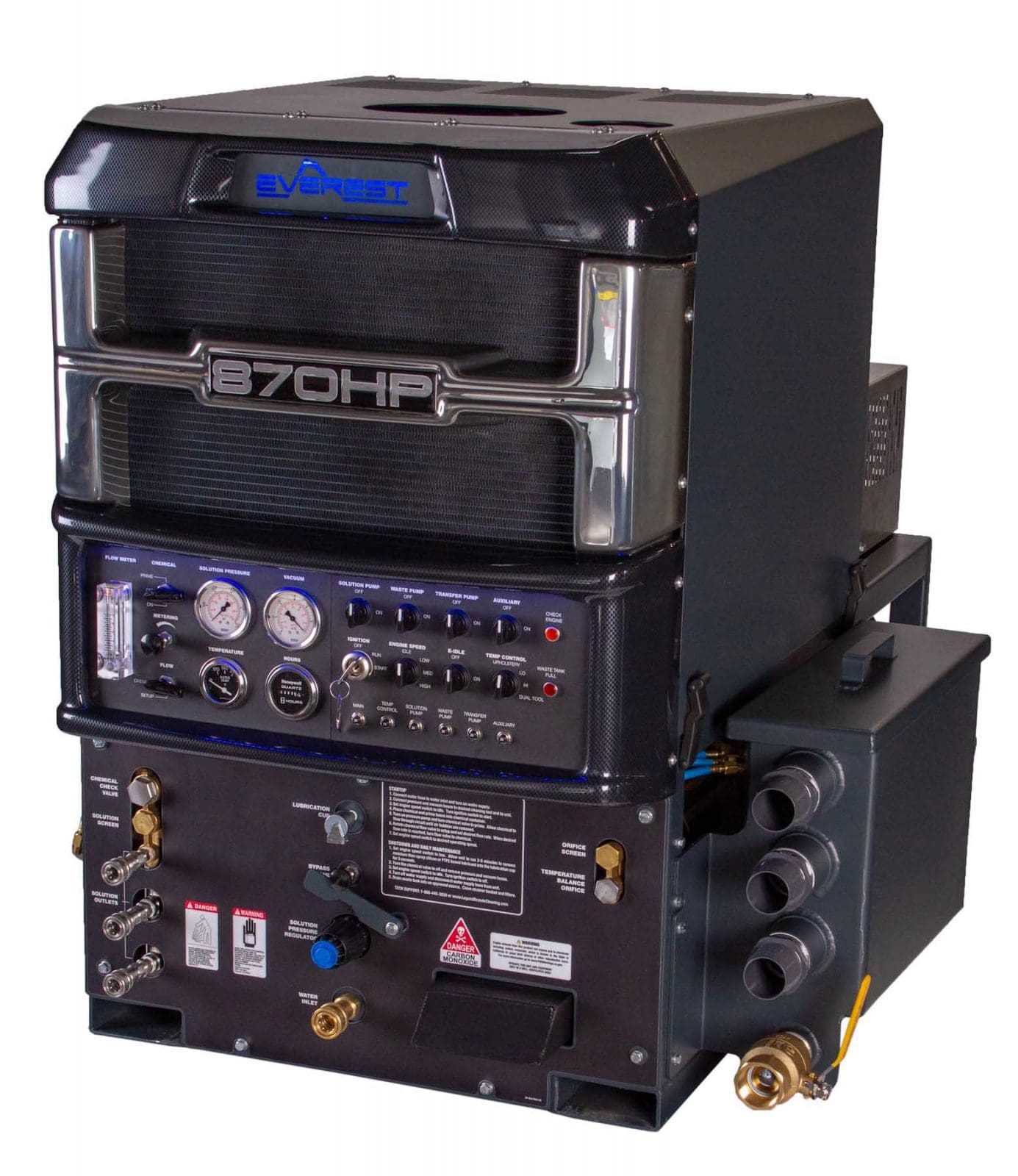

The 870 is The Beast! Delivering more heat, more vacuum and more pressure than any other unit in its class, the 870 employs premium components throughout – including the commercial-grade 1.6-liter Hyundai gasoline power plant and a tri-lobe vacuum blower. Harness this to triple-source heat cogeneration and you get powerful, consistent heat for all-day cleaning even on the largest jobs.

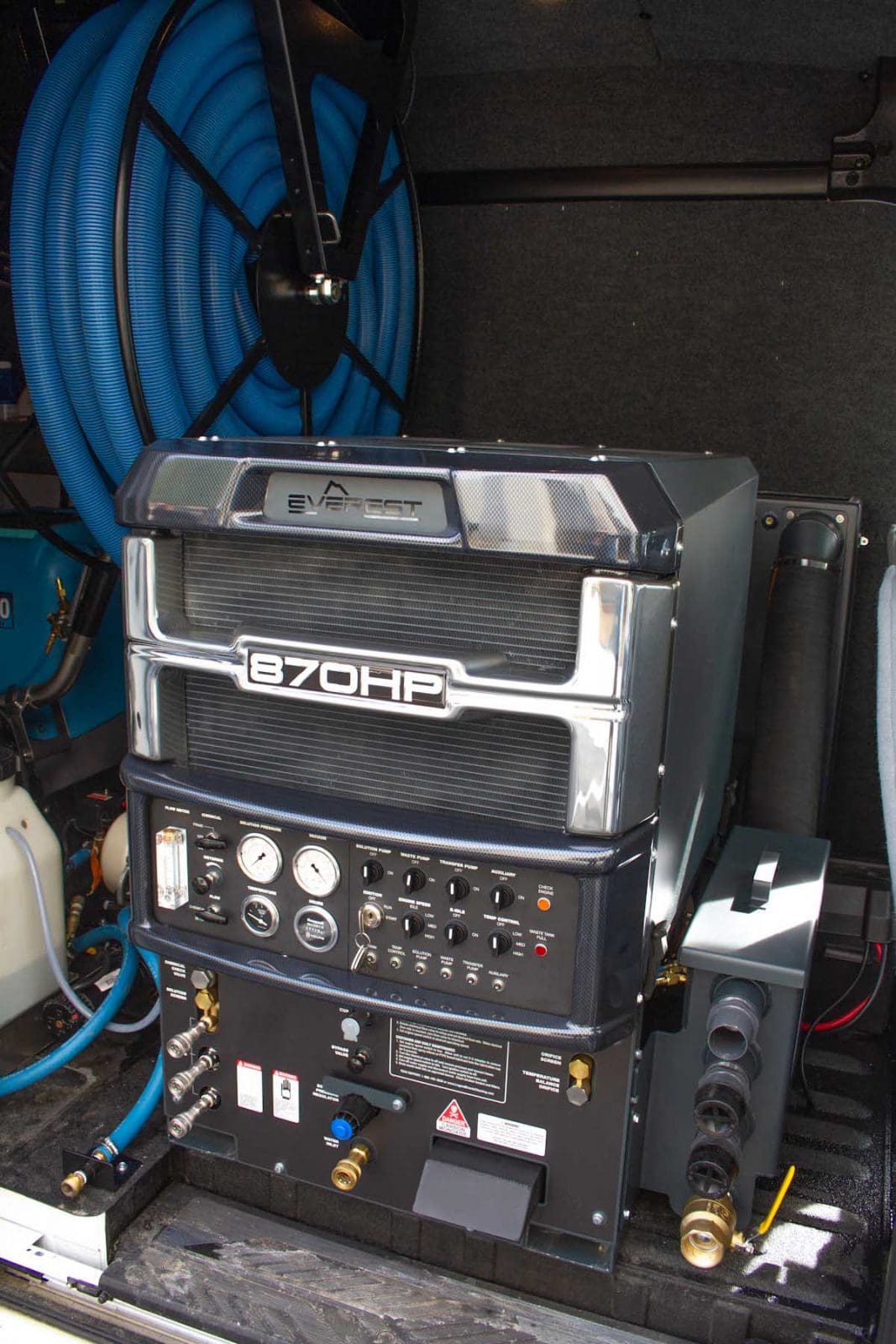

As one of the most powerful slide-in truckmounts available the 870SS exceeds expectations as a high pressure high temperature truckmount. No other other machine can operate two hard surface tools while maintaining full pressure and heat!
- Maintain full heat and pressure. Clean carpet, upholstery and hard surfaces. Even operate two hard surface tools simultaneously!
- Liquid-cooled industrial engine is fully EPA-compliant
- Patented thermal well system with finned tube coil design and thermostatic control.

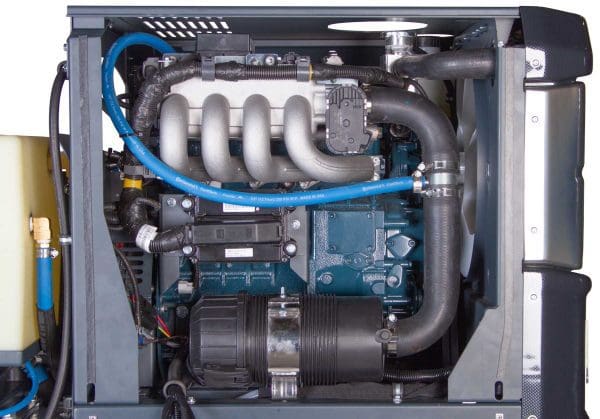

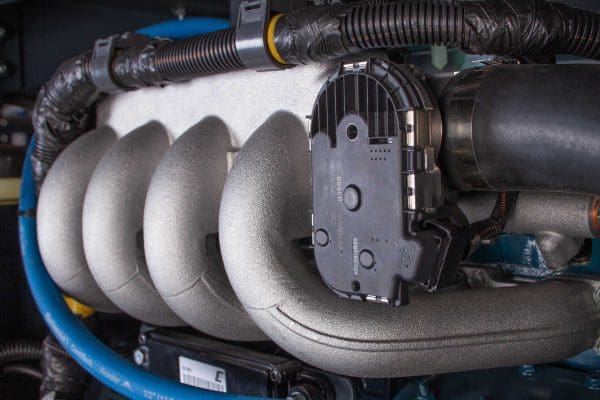

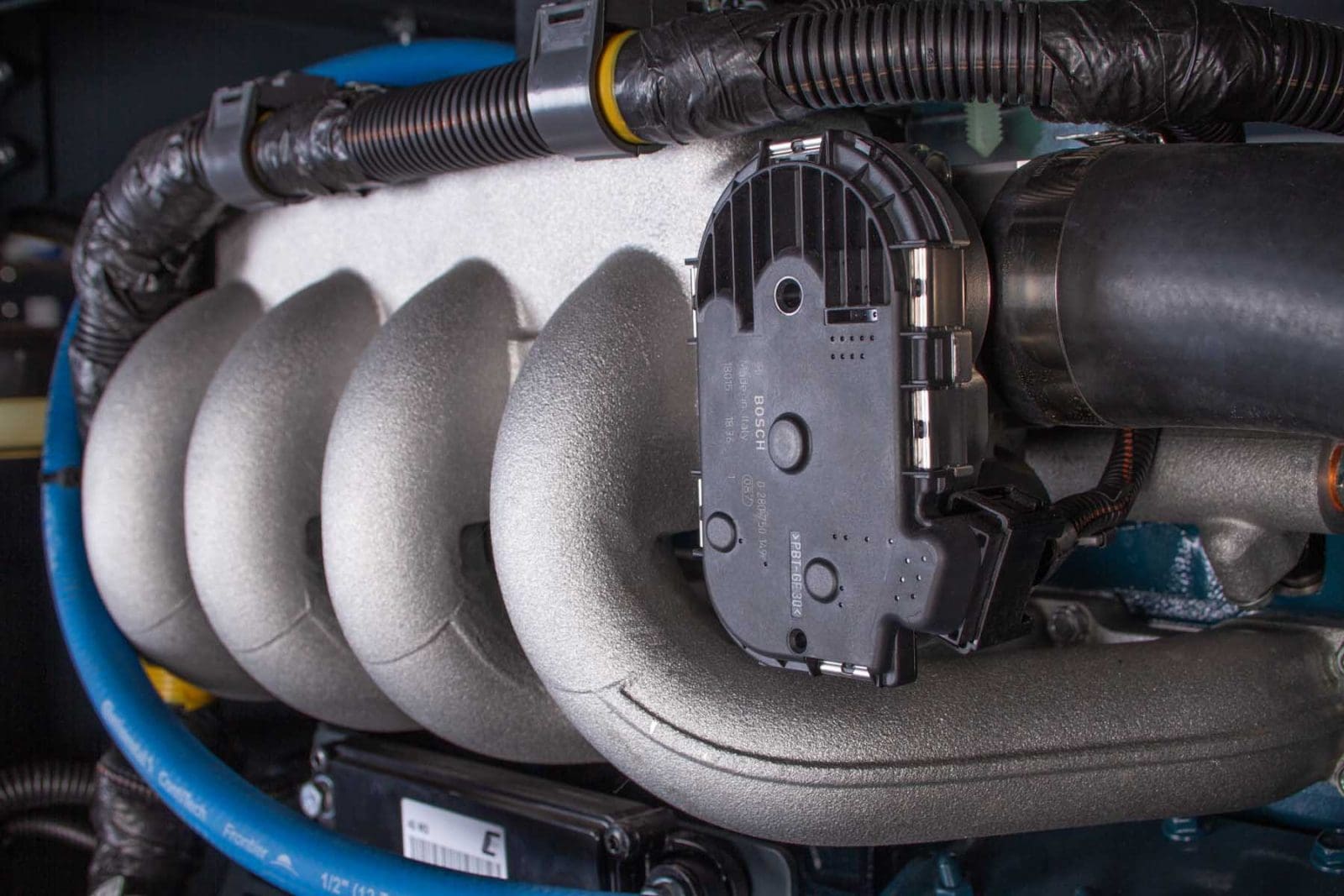

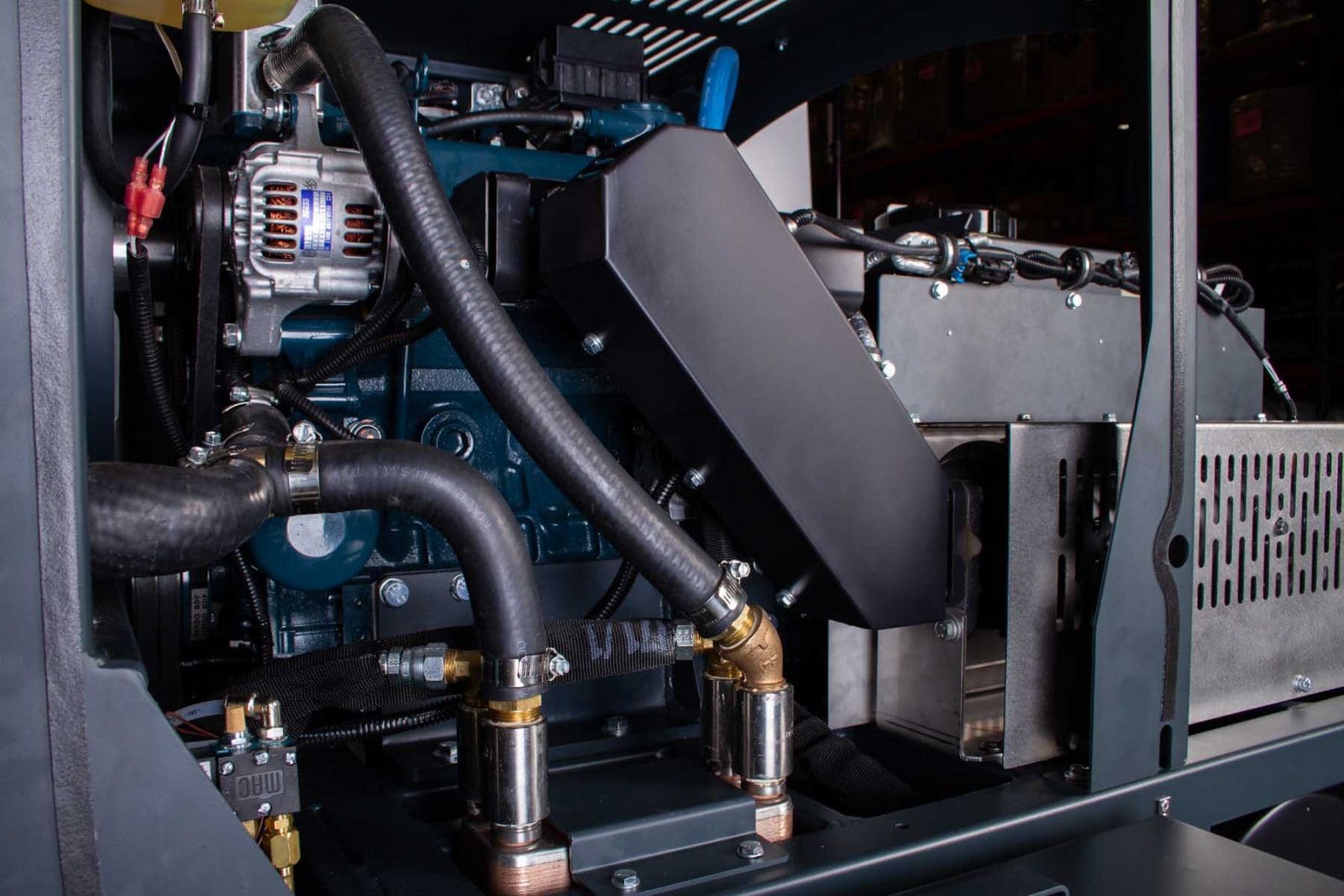

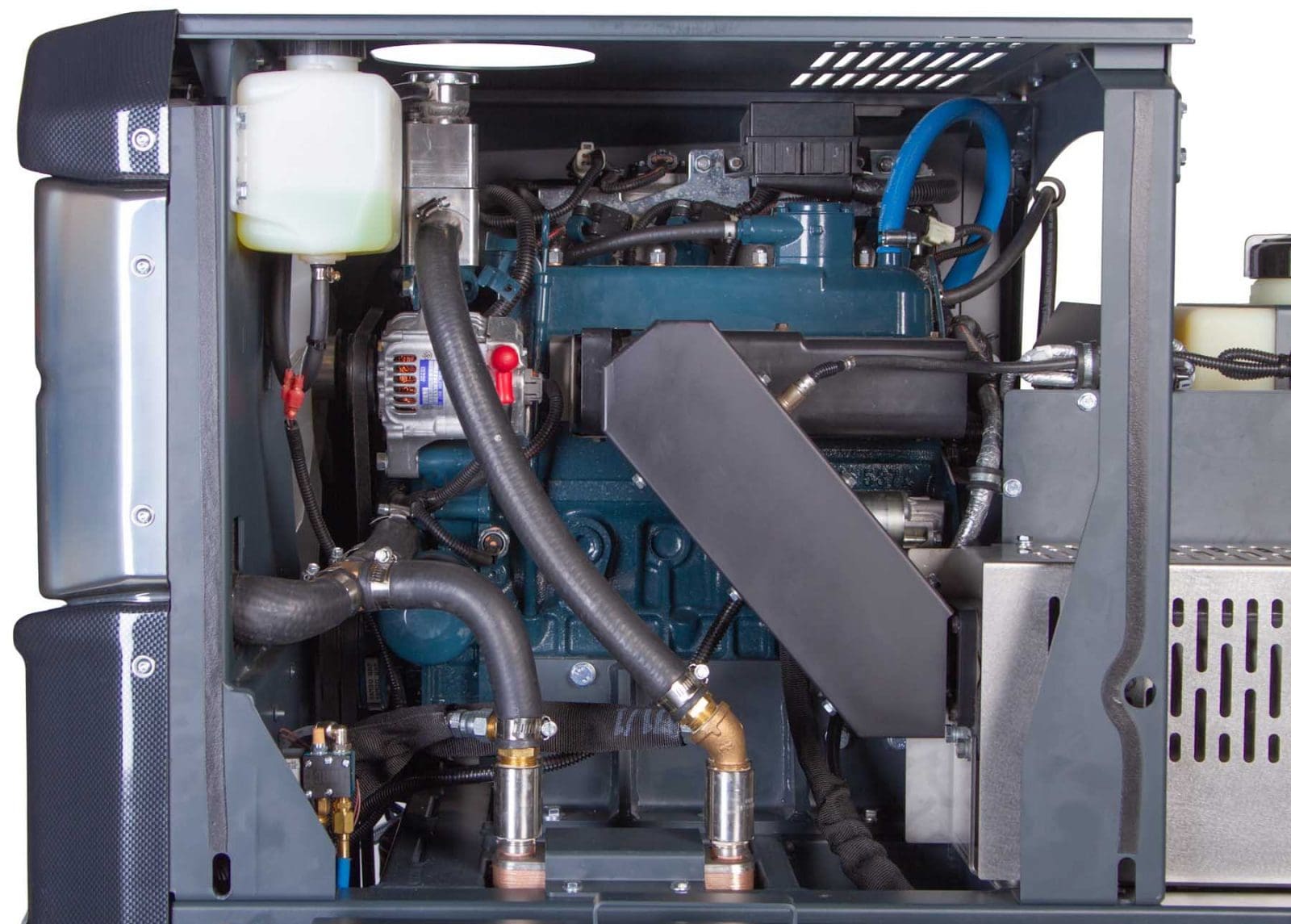

Powerplant: Ford 63 HP 1.6 L four cylinder liquid-cooled gasoline engine. Propane and natural gas options available.

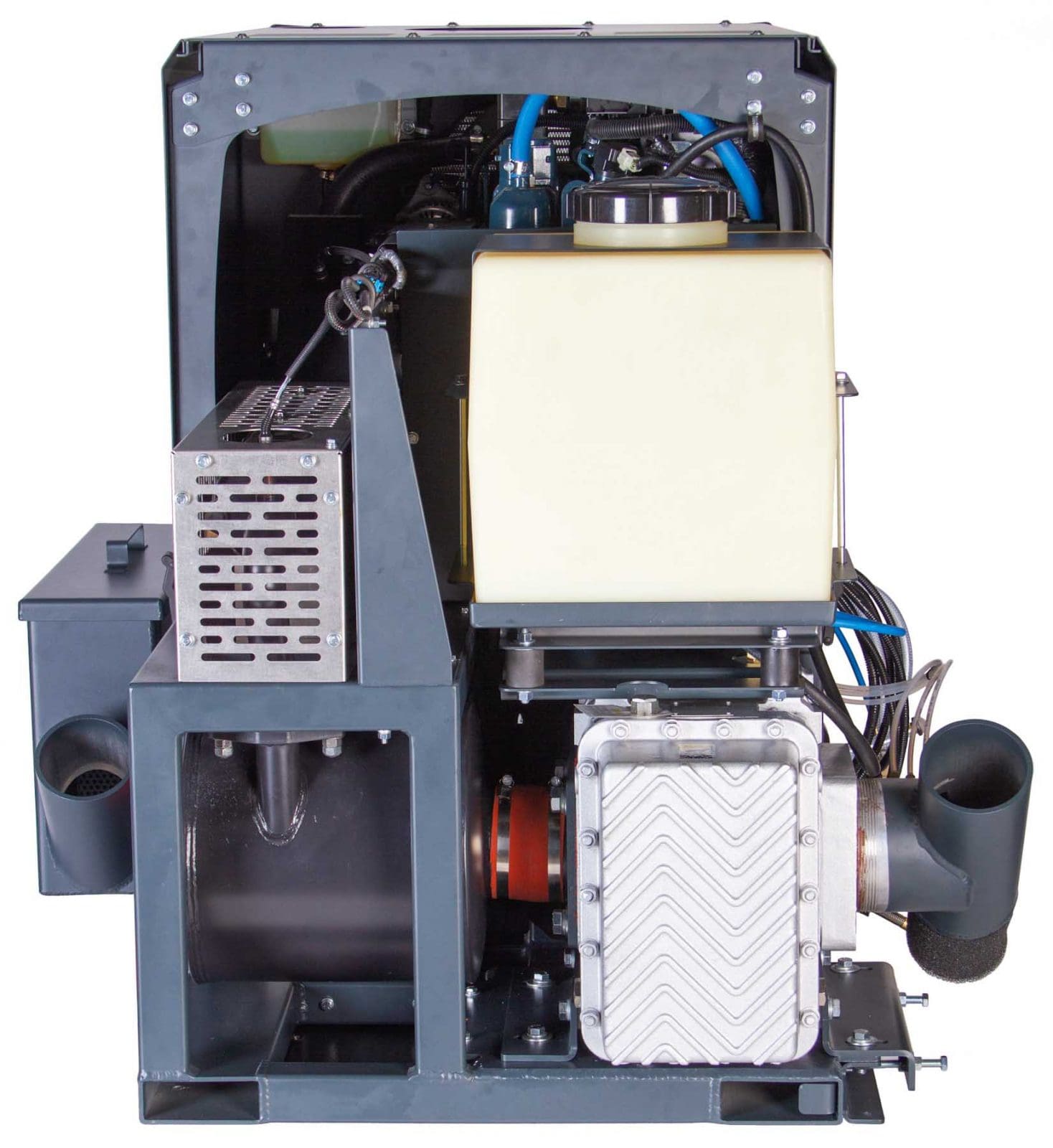

Vacuum pump: Heavy-duty tri-lobe positive displacement blower. Vacuum at 13 in. Hg and flows to 770 CFM.
Solution pump: General HTS2016S producing up to 2500 PSI and 5.7 GPM at 1470 RPM.

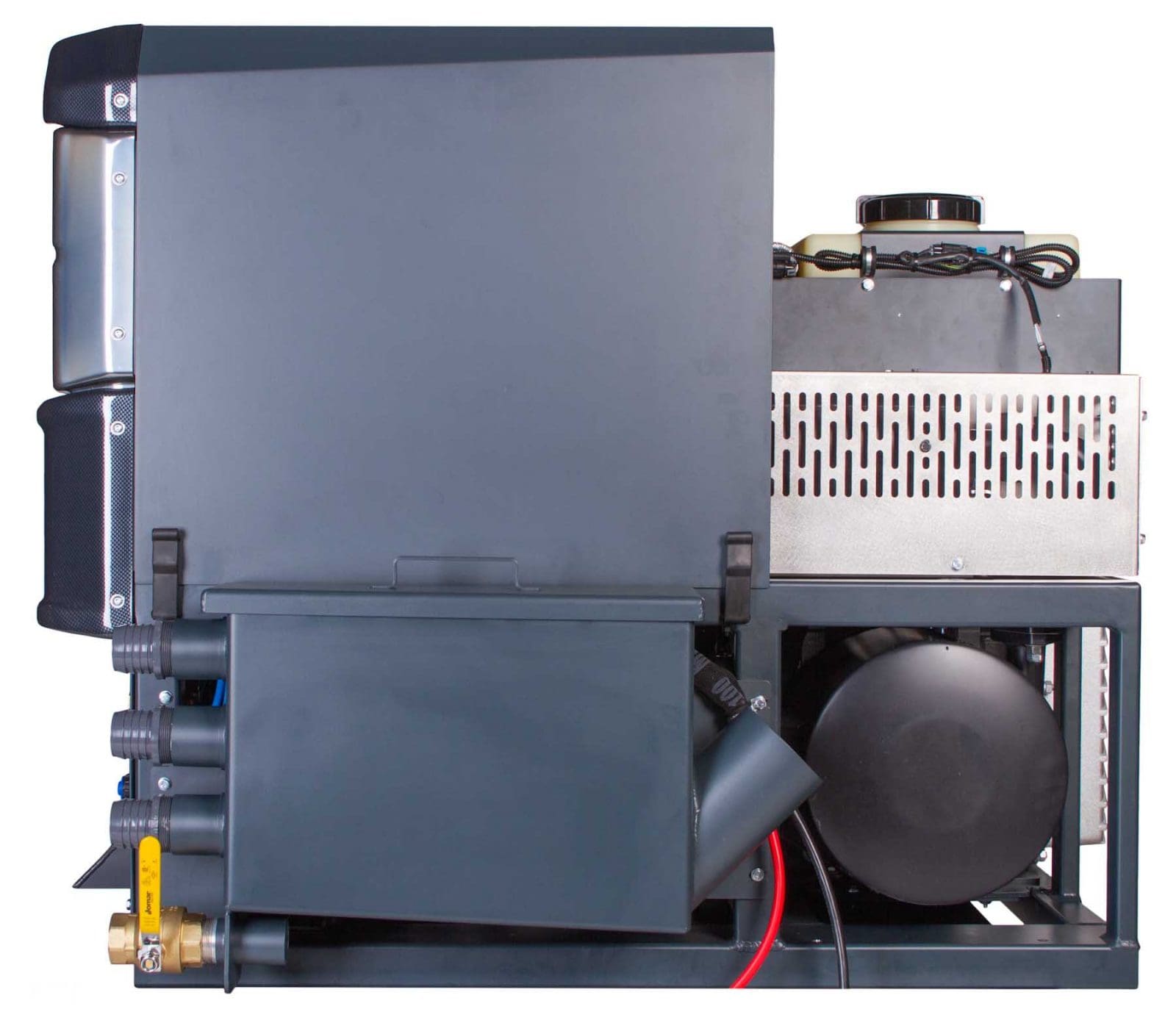

Waste tank: 90 gal. (340 l) TIG-welded 3/16 in. marine-grade aluminum. Optional: 120 gal. (454 l) / 100 gal. (379 l) at shutoff.
Frame construction: MIG-welded 1/8 in. × 2 in. powder-coated steel box tubing
Console dimensions (W × H × D): 30 × 43 × 52 in. | 76 × 109 × 132 cm
