Sapphire Scientific 570SS Truckmount

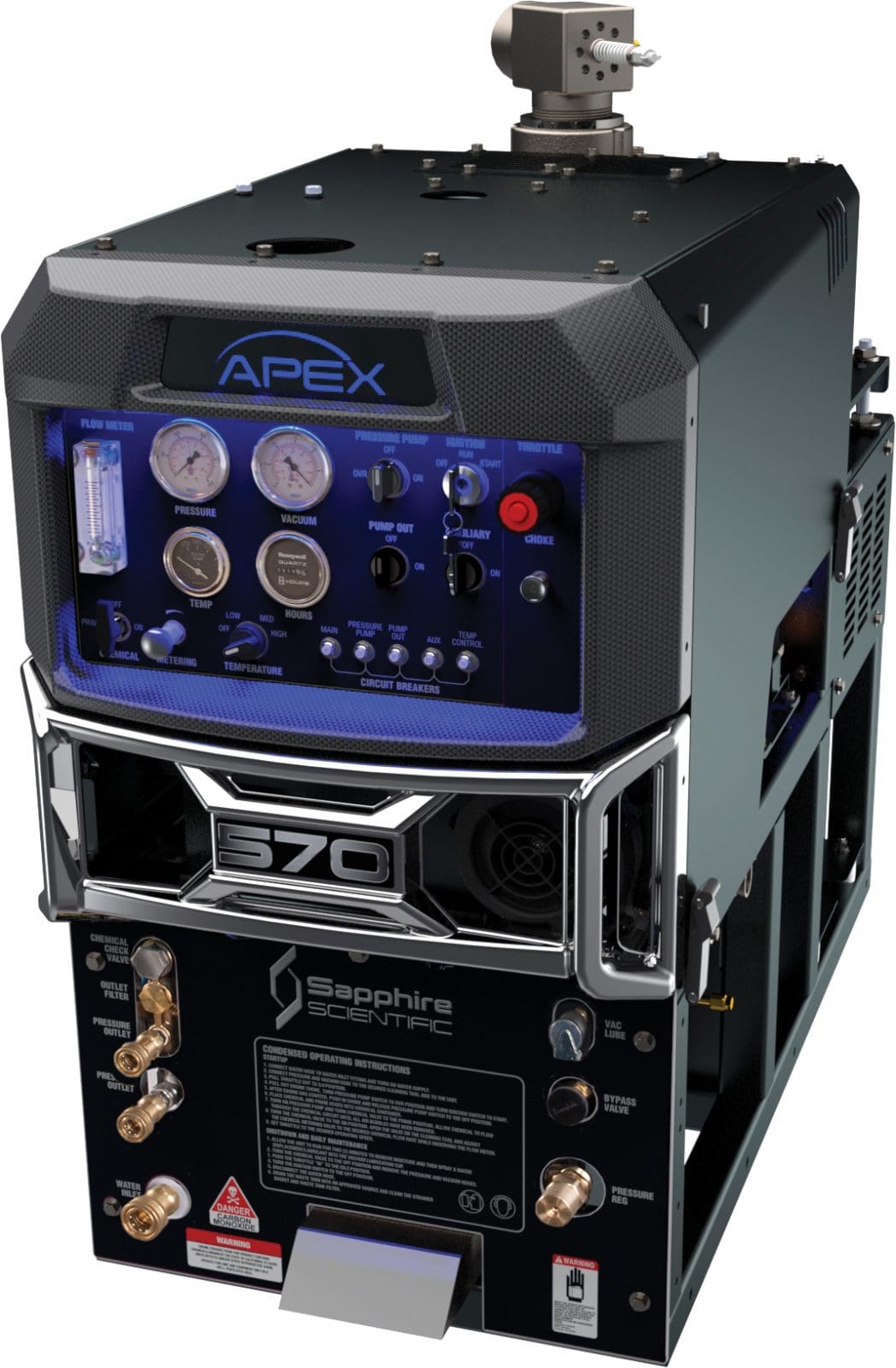

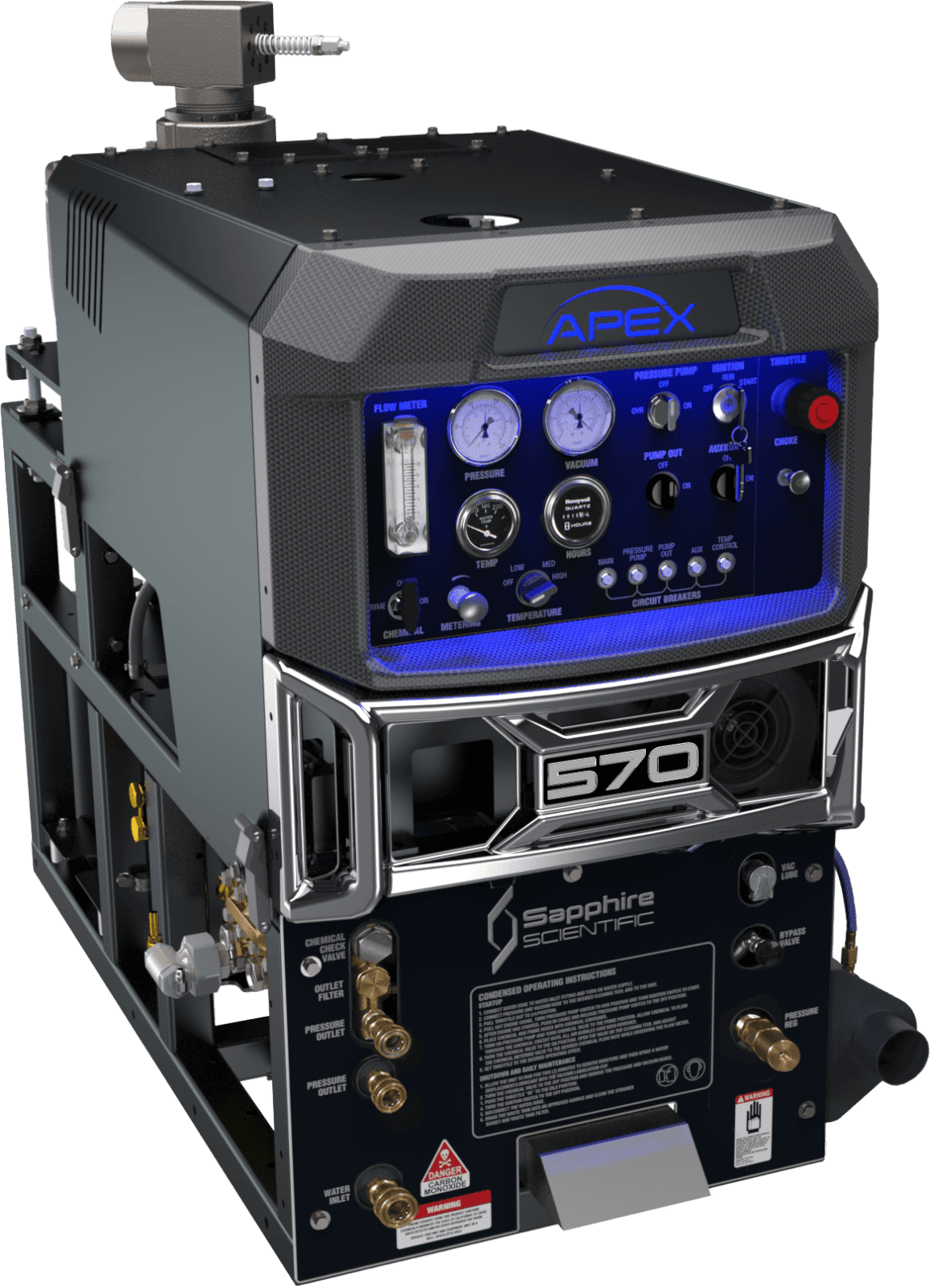

Sapphire Scientific 2018 Apex 570SS Truckmount
Specifically designed as a dual-wand unit for residential and commercial applications the 570 has the capacity to serve your business needs for years to come. This unique technology keeps the engine and blower cooler extends component life and reduces maintenance keeping you on the job making money.
Power plant: Kubota WG972 31 HP liquid cooled cast iron gasoline engine operating at 2950 RPM
Vacuum pump: Gardner Denver HeliFlow® 408 helical blower. Vacuum at 13 in. and flows up to 455 CFM
Solution pump: General HTS2016S producing up to 1500 PSI and 5.8 GPM at 1500 RPM
Waste tank: 90 gal. (340 l) TIG-welded 3/16 in. marine-grade aluminum. 75 gal. (283 l) at shutoff. OPTION: High capacity tank 120 gal. (454 l). 100 gal. (379 l) at shutoff.
Belt cooling: 100 CFM through-frame air injection belt cooling
Console dimensions (W × H × D): 22 × 43 × 50 in. | 56 × 109 × 127 cm
Frame construction: MIG-welded 1/8 in. × 2 in. powder-coated steel box tubing
